Optimising IAQ in Schools Using BS 40102-1:2023 and BB 101
Improving indoor air quality (IAQ) in schools is crucial for creating healthier and more comfortable educational environments. This guide explores how the recently updated British Standard BS 40102-1:2023 complements the established Building Bulletin 101 (BB101) standard to deliver both measurable performance and regulatory alignment in educational buildings. By integrating BB101 ventilation standards with the performance-based ventilation approach outlined in BS 40102-1:2023, schools can implement robust, future-ready ventilation strategies that prioritise air purity, thermal comfort, and the overall classroom environment.
1. Understanding the Standards: A Complementary Approach
Managing indoor air quality (IAQ) in schools effectively requires aligning compliance with performance. BS 40102-1:2023 and Building Bulletin 101 (BB101) serve different but complementary roles in this effort. One focuses on performance-based ventilation, and the other on minimum ventilation in classrooms. Understanding the distinctions between these two standards is crucial for creating safe, healthy, and regulatory-compliant educational environments.
BS 40102-1:2023 – A Performance-Based Framework
BS 40102-1:2023 signals a shift from prescriptive ventilation requirements to outcome-focused environmental performance. It provides a framework for indoor air quality assessment that incorporates a wide range of environmental and human factors, promoting both compliance and innovation in school ventilation planning.
Key aspects of BS 40102-1:2023 include:
- Performance-based design: Targets are set based on actual occupant needs and measurable outcomes rather than minimum airflow rates.
- Lifecycle assessment: Considers the IAQ performance throughout the building’s lifespan, from design and construction to operation and maintenance.
- Health and well-being focus: Explicitly links IAQ parameters to potential health impacts and occupant well-being.
- Parameter measurement: Defines detailed methods for measuring critical IAQ parameters such as Particulate Matter (PM), Carbon Monoxide (CO), Total Volatile Organic Compounds (TVOCs), Nitrogen Dioxide (Nox), Ozone (O3), Carbon Dioxide (CO2), Temperature, Humidity, and Air Velocity.
- Building occupant influence: Acknowledges and incorporates the dynamic impact of occupant behaviour and activities on IAQ.
- Health impacts: Correlates IAQ parameters with potential health risks, guiding design decisions to mitigate these risks.
BB101 – Ventilation Standards for Schools
BB101 ventilation standards set the baseline for fresh air requirements in educational buildings. It defines the minimum performance standards required to maintain thermal comfort, regulate CO2 levels in classrooms, and support effective learning, in accordance with established school ventilation guidelines in the UK.
Key Aspects of BB101 Include:
- Minimum ventilation rates: Specifies the minimum fresh air supply rates per occupant and per unit area to ensure adequate ventilation. These rates are often based on assumed CO2 generation per person.
- CO2 limits: Defines maximum acceptable CO2 concentrations in classrooms and other occupied spaces.
- Noise limits: Set limits on noise levels generated by ventilation systems to ensure a conducive learning environment.
- Temperature and humidity control: Provides recommendations for maintaining appropriate temperature and humidity levels.
- Natural and mechanical ventilation: Offers guidance on both natural and mechanical ventilation, including the use of Mechanical Ventilation with Heat Recovery (MVHR) systems where suitable.
Integrating BS 40102-1:2023 and BB101 for Enhanced IAQ in Schools
The effective integration of these two indoor air quality standards in education offers a practical framework for achieving better classroom air quality.

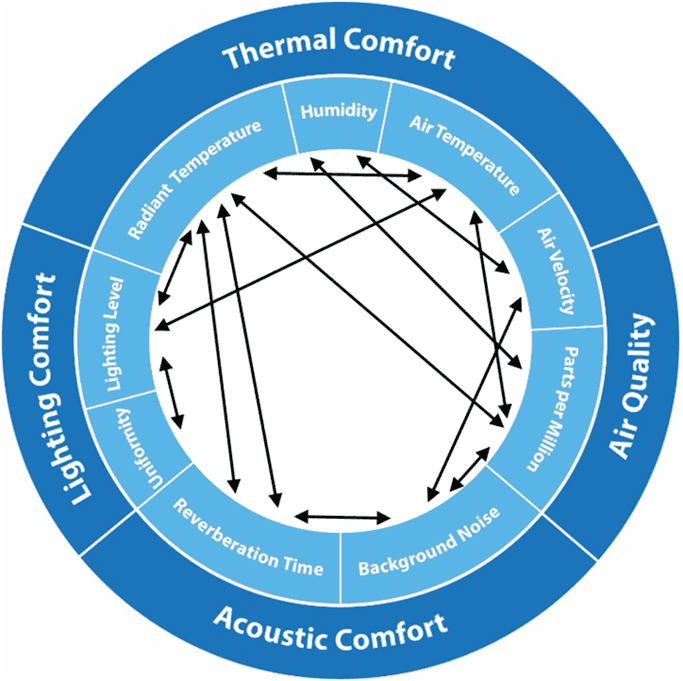

The Environmental Circle (as shown in Figure 1) below illustrates the key factors that contribute to indoor environmental quality (IEQ), including indoor air quality, thermal comfort, acoustics, and lighting. When implementing BB101 and BS 40102-1:2023, these elements must be managed together to ensure healthy and productive learning environments.
Figure 1 The Environmental Circle: Showing the relationship between comfort factors and ventilation design elements in school buildings.
1. BB101 as the Foundation, BS 40102-1:2023 as the Performance Enhancer
BB101 ventilation standards provide the foundation for ventilation in classrooms, defining minimum CO₂ levels, thermal comfort, and ventilation rates. BS 40102-1:2023 enhances this by introducing a performance-based ventilation model, helping schools not only meet targets but also measure and improve actual conditions. The focus shifts from simply supplying fresh air to ensuring it translates into measurable IAQ performance objectives in educational buildings.
2. Performance-Based Design Informed by BB101
BB101 specifies prescriptive ventilation rates to prevent the build-up of carbon dioxide (CO₂) and support thermal comfort. BS 40102-1:2023 allows for flexibility by validating these rates against occupancy patterns, time of day, and space usage. This encourages the use of Demand-Controlled Ventilation (DCV) strategies based on real-time indoor air quality (IAQ) data, helping schools reduce energy consumption without compromising air quality.
3. Comprehensive IAQ Parameter Monitoring
While BB101 focuses primarily on CO₂, BS 40102-1:2023 adopts a broader perspective by encompassing PM (particulate matter), VOCs (volatile organic compounds), temperature, and humidity. This supports a more detailed indoor air quality assessment, helping identify pollutants that CO₂ monitoring alone would miss. Ongoing IAQ monitoring and maintenance based on this approach allows for proactive system adjustments and long-term health benefits.
4. Lifecycle Assessment for Long-Term Performance
By integrating the lifecycle assessment model of BS 40102-1:2023, schools can ensure that their education building ventilation systems, aligned with BB101, continue to perform effectively over time. This includes evaluating system maintenance, filtration effectiveness, and potential for upgrades. The approach supports better investment decisions and reduces future retrofit costs by ensuring ongoing compliance with evolving indoor air quality standards in education.
5. Addressing Occupant Influence Holistically
BB101 accounts for occupancy numbers, but BS 40102-1:2023 digs deeper by considering specific occupant behaviours. Activities such as physical education, group learning, or experiments can affect airflow requirements and pollutant levels. Integrating both standards enables adaptive solutions, such as Mechanical Ventilation with Heat Recovery (MVHR) or heat recovery ventilation controlled by actual usage data. This ensures systems respond accurately to daily variations.
6. Targeting Health and Well-being Beyond CO2
High carbon dioxide (CO₂) levels are associated with drowsiness and reduced cognitive function, which BB101 aims to mitigate. BS 40102-1:2023, however, widens the focus on overall well-being by targeting additional pollutants, such as PM and VOCs. Solutions such as high-grade filtration, proper source control, and effective air handling unit (AHU) design further enhance indoor air quality in schools, ensuring a safe and healthy space for both students and staff.
Air Handling Units (AHUs) as Key Components for Integrated Compliance
Air Handling Units (AHUs) are central to meeting the indoor air quality (IAQ) objectives outlined in both BS 40102-1:2023 and BB101. When designed and specified in alignment with these standards, modern AHUs offer effective and adaptable ventilation solutions for educational buildings.
1. Meeting BB101 Ventilation Rates with Precision
AHUs can be accurately sized and controlled to deliver the minimum fresh air rates required under BB101 ventilation standards, ensuring effective dilution of carbon dioxide (CO2) and other indoor pollutants. Demand-controlled ventilation (DCV) systems, when integrated with Air Handling Units (AHUs) and guided by real-time Indoor Air Quality (IAQ) monitoring (as encouraged by BS 40102-1:2023), enable schools to reduce energy use while maintaining consistent compliance across fluctuating occupancy conditions.
2. Advanced Filtration for BS 40102-1:2023 Compliance
While BB101 prioritises fresh air delivery, BS 40102-1:2023 stresses the importance of removing airborne pollutants. AHUs can be equipped with multi-stage filtration systems, such as ePM1 55–80% filters or Carboactiv bag filters, to efficiently capture particulate matter (PM) and other pollutants, including nitrogen oxides (NOx), as specified in the performance-based standard. These advanced filters help create a healthier indoor environment, particularly in urban school locations.
For a closer look at how filtration performance can be evaluated in real-world settings, view our Air Handling Unit condition report.
3. Temperature and
Humidity Control
Modern AHUs enable precise regulation of temperature and humidity, contributing to improved thermal comfort and supporting the IAQ objectives of both standards. This is crucial for preventing the growth of mould and bacteria, which can negatively impact IAQ.
4. Energy Efficiency and Lifecycle Performance
Modern Air Handling Units (AHUs) are designed for energy efficiency, often incorporating heat recovery ventilation systems. Applying the lifecycle assessment principles of BS 40102-1:2023 involves selecting AHUs with durable components, ease of maintenance, and potential for future upgrades to ensure optimal performance and energy efficiency throughout the building’s lifespan. Integrating these systems with our management systems further supports long-term operational control and performance tracking.
5. Noise Control
AHUs must be designed to meet the acoustic limits defined in BB101, which may include selecting low-noise fans, incorporating acoustic lining within the unit casing, and integrating attenuation measures into the ductwork layout. These strategies help maintain a conducive learning environment.

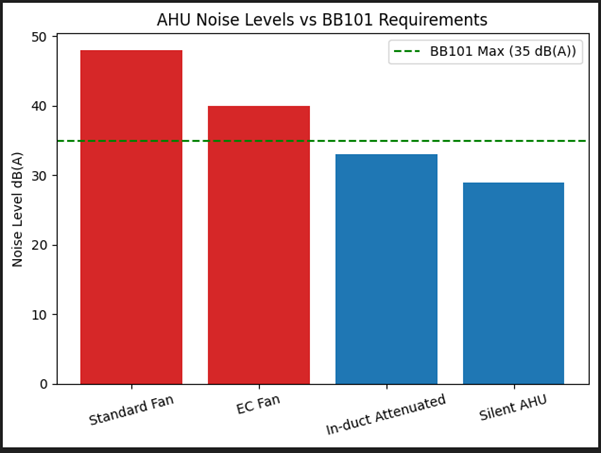

Figure 2: AHU Noise Levels vs BB101 Requirements
Implementation Strategy for BS 40102-1:2023 and BB101 in Schools
To effectively implement the principles of BS 40102-1:2023 and Building Bulletin 101 (BB101), schools should follow a clear, phased strategy that combines design intent with operational best practices. The following steps are recommended:
1. Comprehensive IAQ Assessment
Begin by carrying out a thorough Indoor Air Quality (IAQ) assessment across all relevant areas of the school. This includes monitoring key parameters defined in BS 40102-1:2023, such as carbon dioxide (CO₂), particulate matter (PM), volatile organic compounds (VOCs), temperature, and relative humidity.
This baseline assessment helps identify underperforming spaces, evaluate compliance with both Building Bulletin 101 (BB101) and BS 40102-1:2023, and prioritise areas needing ventilation upgrades or source control.
To interpret CO₂ levels, BS 40102-1:2023 refers to performance categories based on BS EN 16798-1, shown below:
| Carbon Dioxide Level | Description | Value (ppm) |
|---|---|---|
| 0 | Very Poor | ≥ 1,800 |
| 1 | Poor | 1,000 -< 1,800 |
| 2 | Moderate | 800 -< 1,000 |
| 3 | Good | 550 -< 800 |
| 4 | Excellent | < 550 |
| Note: Based on BS EN 16798-1 using an assumed outdoor CO₂ level of 415 ppm. | ||
Table 1: Carbon Dioxide parameters addressed in BS 40102-1:2023
2. Define Performance Objectives
Based on the IAQ assessment and both standard requirements, define SMART (Specific, Measurable, Achievable, Relevant, Time-bound) IAQ targets. These should exceed the minimum benchmarks set in BB101 ventilation standards, aiming to support classroom air quality that promotes cognitive function and health.
3. Review and
Design
Ventilation Systems
Assess the performance of the current ventilation infrastructure. Redesign or upgrade systems as needed to meet both BB101 and BS 40102-1:2023 targets. Consider Mechanical Ventilation with Heat Recovery (MVHR) systems and implement Demand-Controlled Ventilation (DCV) strategies informed by occupancy and indoor air quality (IAQ) data.
4. Specify and Procure AHUs
Select Air Handling Units (AHUs) that comply with BB101 requirements for ventilation rates and noise control while also aligning with the performance-based approach outlined in BS 40102-1:2023. Include high-efficiency filtration (e.g., ePM1 or activated carbon filters) and smart control integration. Collaborate with reputable suppliers who are familiar with UK school ventilation guidelines.
5. Professional Installation and Commissioning
Ensure AHUs and ventilation systems are installed by certified professionals. Commissioning should confirm that the equipment operates as designed and meets defined IAQ objectives. This step is essential for compliance with both standards and ensures long-term efficiency and effectiveness.
6. Ongoing Monitoring and Maintenance
Develop a structured plan for IAQ monitoring and maintenance, using real-time data to ensure continuous compliance with BS 40102-1:2023. Regular filter replacements, system diagnostics, and performance reviews support the lifecycle performance of ventilation systems and AHUs.
7. Occupant Engagement
Raise awareness among students, staff, and families about how their behaviour influences indoor air quality standards in education settings. Encourage responsible practices, such as using windows properly and avoiding sources of indoor pollution. This aligns with the occupant influence considerations in BS 40102-1:2023.
Conclusion
The integration of BS 40102-1:2023 and Building Bulletin 101 offers a comprehensive and practical framework for enhancing indoor air quality in schools. Moving beyond minimum prescriptive standards to adopt a performance-based, occupant-focused approach enables schools to deliver healthier and more comfortable learning environments. Central to this strategy is the use of well-designed and properly maintained Air Handling Units (AHUs) that meet both the ventilation requirements of BB101 and the broader IAQ performance criteria of BS 40102-1:2023.
The successful application of these standards depends on close collaboration between consulting engineers, contractors, and building stakeholders, working together to create school buildings that support health, concentration, and well-being.
